Agentforce Agent Design Patterns Enterprise

Most enterprise Agentforce implementations fail not because the technology is immature, but because teams apply consumer chatbot patterns to enterprise-scale problems. The architecture that works for a single-topic service agent collapses when you need coordinated reasoning across sales, service, and operations at 50,000-user scale.

The question isn’t whether to use agentforce agent design patterns enterprise organizations need — it’s which patterns to apply when, and how to compose them into solutions that survive contact with production. There are four patterns worth knowing. Most orgs will use three of them.

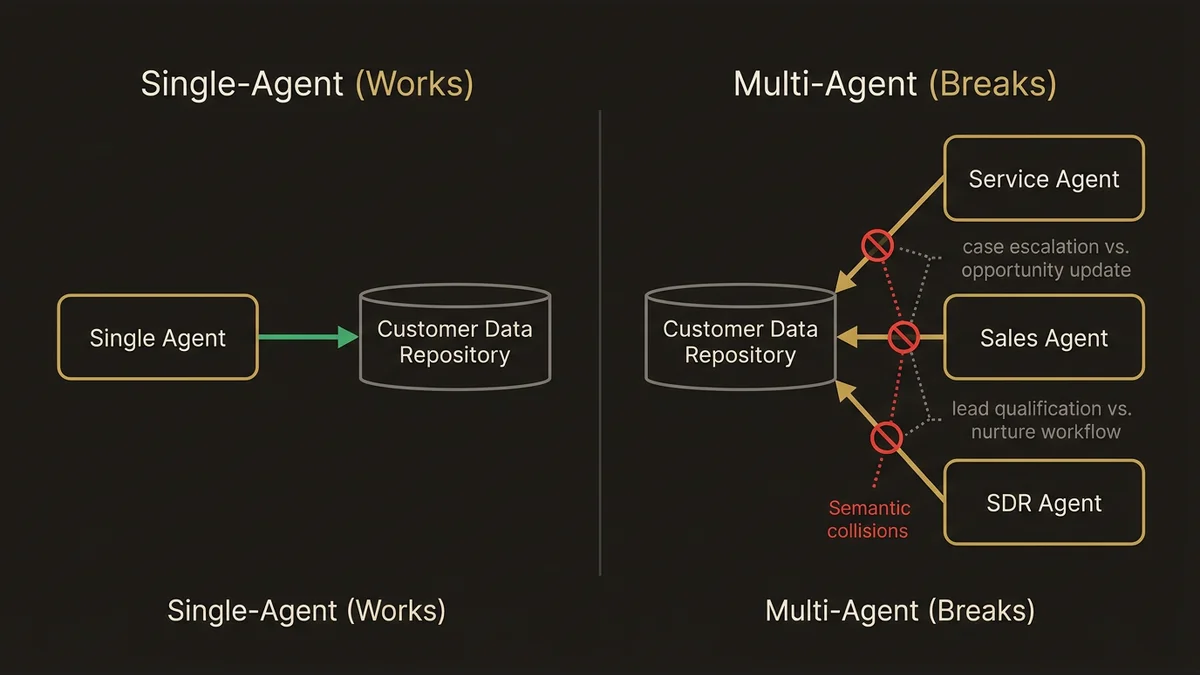

The Problem: Single-Agent Thinking at Multi-Agent Scale

Enterprise orgs inherit a fundamental mismatch. A single agent reasoning over a single topic is straightforward. But when you deploy agents across Service Cloud, Sales Cloud, and Field Service simultaneously — each reasoning independently over shared customer data — you create semantic collisions.

A service agent escalates a case while a sales agent simultaneously updates the same opportunity. An SDR agent qualifies a lead that a nurture agent is already working. Atlas reasons within the scope you define: topics, actions, instructions. If those scopes overlap without coordination, Atlas can’t prevent conflicts. The reasoning is sound within each agent. The architecture between agents is where things break.

The solution is pattern-based composition: Greeter, Operator, Orchestrator, and Judge & Jury patterns that define how agents coordinate, not just what they do. Getting the agent architecture right matters more than getting any individual agent right.

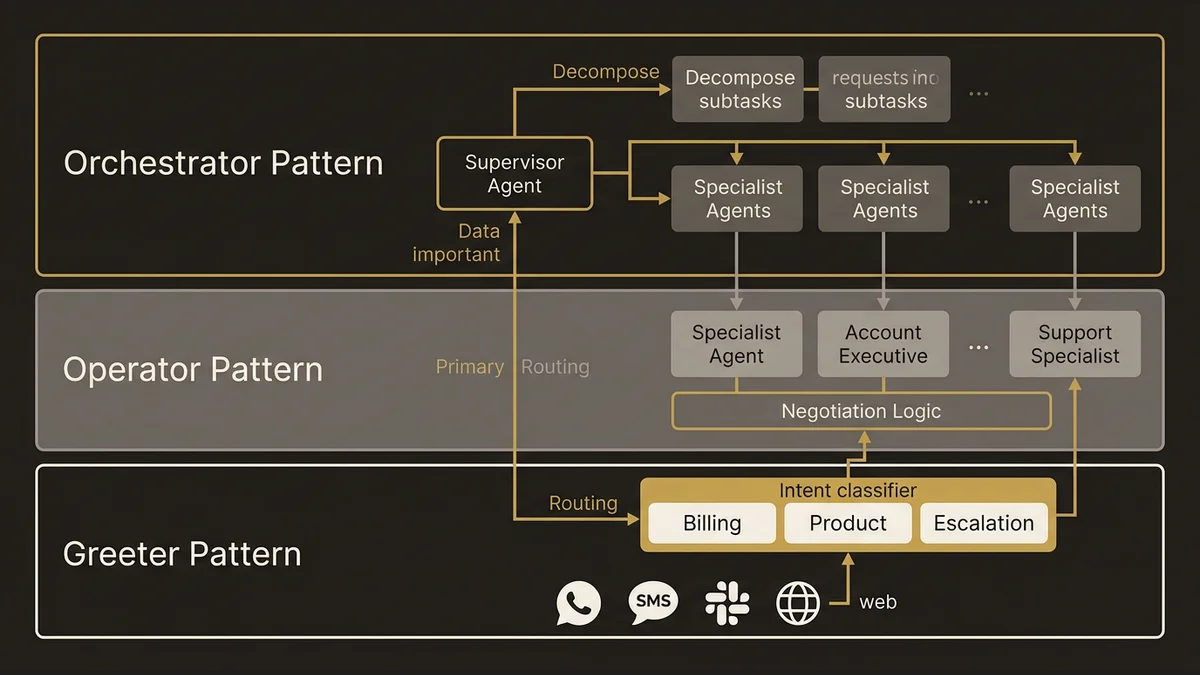

Core Enterprise Patterns: Greeter, Operator, Orchestrator

These three patterns represent increasing levels of coordination complexity. Most enterprise implementations will move through them sequentially as use cases mature.

Greeter Pattern — Single entry point, intent classification, routing. Use this when you need channel abstraction (WhatsApp, SMS, Slack, web chat) but don’t yet have complex multi-step workflows. The Greeter determines “Is this a billing question, a product question, or an escalation?” and routes accordingly. Simple, fast, low reasoning overhead. Start here.

Operator Pattern — Adds negotiation and specialist routing. When intent is ambiguous (“I need help with my order” — is that tracking, cancellation, or modification?), the Operator negotiates with the user to clarify before routing to the right specialist agent or human representative. In a sales context, the Operator handles the qualification flow: understanding prospect needs, gathering budget and timeline data, and routing to the right account executive. The key architectural decision is where negotiation logic lives — in the Operator’s instructions or in downstream specialist topics.

Orchestrator Pattern — Multi-agent coordination. A supervisor agent receives the request, breaks it into subtasks, delegates to specialist agents, and synthesizes responses. For external functionality beyond the Salesforce org, agents connect through MuleSoft as an integration layer. This pattern centralizes orchestration logic in Salesforce, which preserves unified governance, identity, permissions, and observability. Lose that centralization, and you lose the ability to audit what your agents are doing.

In practice, most enterprise implementations start with Greeter, evolve to Operator as use cases mature, and adopt Orchestrator when cross-cloud workflows become the norm.

Judge & Jury: Minimizing Hallucinations at Scale

The problem isn’t that agents hallucinate. The problem is that in regulated industries, a single hallucinated response can trigger compliance violations, financial liability, or patient safety incidents.

The Judge & Jury pattern addresses this with ensemble reasoning: multiple “juror” agents independently process the same request, then a “judge” agent evaluates whether the responses are materially consistent and grounded in actual data. If the jurors disagree, the judge flags the response for human review rather than returning a potentially wrong answer.

Use this pattern when the cost of an incorrect response is high: financial services compliance, healthcare treatment recommendations, legal contract analysis. The pattern adds latency — multiple agents reason, then a judge evaluates — but the accuracy gain justifies it in regulated industries.

A common mistake: applying Judge & Jury to every interaction. Reserve it for high-stakes decisions. For routine inquiries, standard Atlas reasoning with proper data grounding is sufficient. The architecture should distinguish between “wrong answer is inconvenient” and “wrong answer is catastrophic.”

Data Cloud Integration: The Grounding Layer

This is where most implementations fail. Teams treat Data Cloud as optional — a nice-to-have data unification layer. It’s not optional. Without unified data, agents reason over incomplete context. A service agent can’t see the customer’s open opportunity. A sales agent can’t see the unresolved case. The agent’s reasoning is only as good as the data it can reach.

The architecture pattern: ingest structured CRM data, unstructured knowledge (PDFs, support tickets, knowledge articles), and external system data (ERP, billing, inventory) into Data Cloud. Map relationships via Data Graphs so agents understand how customers connect to orders, cases, products, and accounts. Configure RAG retrievers to pull relevant context at inference time from vector stores and CRM records.

One architectural constraint that catches teams off guard: querying external legacy systems introduces latency that directly impacts agent response time. At the scale of enterprise deployments — thousands of concurrent conversations — a 2-second API call to an ERP system becomes a user experience problem. Test inference latency end-to-end using the Agentforce Testing Center before going live. If response times exceed acceptable thresholds, cache frequently accessed external data in Data Cloud rather than querying it in real time.

Topics, Actions, Instructions: The Control Plane

The hierarchy matters. Topics define scope (“What can this agent do?”). Actions define tools (“How does it do it?”). Instructions define behavior (“How should it decide?”). Topics come first. Actions and instructions live under topics. This isn’t arbitrary — it’s the control plane that determines what the reasoning engine considers during classification.

The architectural distinction that most teams miss is between filters and instructions. Filters are deterministic: if case status equals closed, the escalation topic is removed from consideration entirely. The agent never sees it. Instructions are probabilistic: “if customer sentiment is negative, prioritize empathy” is interpreted by the LLM, and outcomes can vary. Filters reduce the search space. Instructions shape behavior within it.

Use filters for business logic that must be enforced without exception. Use instructions for behavioral guidance where some flexibility is acceptable. Loading deterministic rules into instructions is an antipattern — the agent will get them right 90% of the time, which in enterprise contexts means it gets them wrong at scale.

Pitfalls: What Most Implementations Get Wrong

Overlapping Topics — If two topics have semantically similar classification descriptions (“billing inquiry” and “payment question”), Atlas can’t reliably disambiguate. Every topic scope must be distinct and verifiable. Test classification with ambiguous inputs before deployment.

Deterministic Logic in Instructions — Agents are not reliable calculators. Any deterministic rules, calculations, discount logic, or database operations should be handled by Flow or Apex actions that the agent invokes — not by instructions the agent interprets. Rules belong in the system, not in the agent’s reasoning.

Ignoring Data Cloud — Agents without unified data produce generic responses. Data Cloud isn’t an enhancement to Agentforce — it’s the foundation. Every external data source (ERP, billing, custom applications) needs to be ingested and mapped before agents can ground their responses in reality.

Single-Agent Architectures at Scale — Deploying agents in isolated silos limits future flexibility. Salesforce’s architecture is moving toward multi-agent interoperability, where specialized agents collaborate. Planning your agent architecture with Supervisor/Specialist patterns from the start avoids a painful re-architecture later.

Key Takeaways

• Pattern-based composition scales — Greeter for routing, Operator for negotiation, Orchestrator for multi-agent workflows, Judge & Jury for high-stakes accuracy.
• Data Cloud is non-negotiable — Atlas reasoning requires unified, grounded data. RAG retrievers, Data Graphs, and vector stores are the foundation.
• Filters for determinism, instructions for reasoning — Use conditional filters to remove irrelevant topics at the system level. Use instructions to guide LLM behavior probabilistically.
• Avoid overlapping topics — Semantic similarity in topic classification descriptions creates ambiguity. Make every topic scope distinct and verifiable.
• Plan for multi-agent interoperability — Single-agent architectures don’t scale. Design with Supervisor/Specialist patterns from the start.
